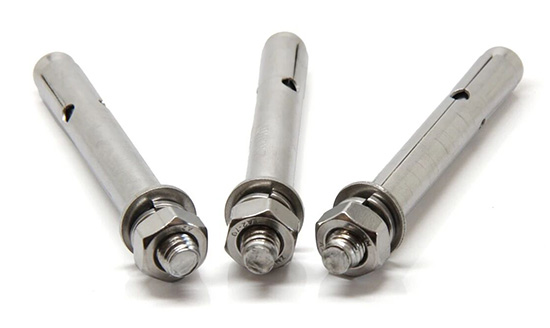

Stainless Steel Expansion Bolts: Corrosion Resistance, Types, and Application Scenarios

When selecting expansion bolts for construction or equipment installation, durability and long-term safety are critical considerations. Compared with traditional carbon steel fasteners, stainless steel expansion bolts stand out primarily for their superior corrosion resistance and environmental adaptability.

Why Choose Stainless Steel Expansion Bolts?

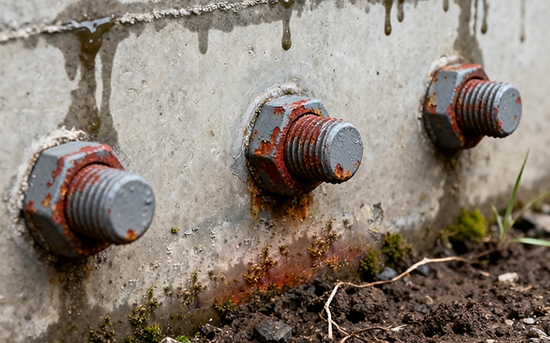

In humid bathrooms, rainy outdoor environments, or installations near water sources, carbon steel bolts are prone to rusting and loosening over time, creating potential safety risks. Stainless steel expansion bolts, however, resist oxidation and corrosion effectively, maintaining stable mechanical performance even under harsh conditions.

This corrosion resistance significantly reduces the need for frequent inspections, maintenance, or replacements, lowering overall lifecycle costs. In addition, stainless steel offers excellent weather resistance, with minimal performance variation under extreme temperature changes. This makes it suitable for both cold northern climates and hot, humid southern regions.

In building renovation, equipment installation, and outdoor engineering projects, the reliability of expansion bolts directly impacts structural safety. Thanks to their material advantages and diversified designs, stainless steel expansion bolts have become a preferred fastening solution across the construction and installation industries.

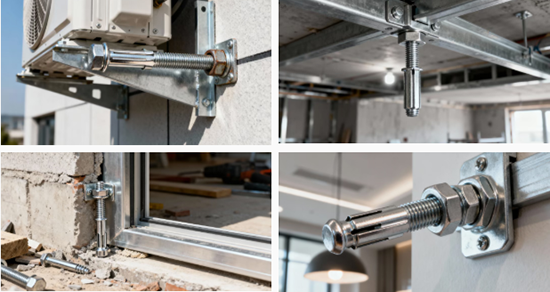

Common Application Scenarios

Stainless steel expansion bolts are widely used in both indoor and outdoor applications, including:

• Indoor lighting fixtures and ceiling systems
• Wall-mounted shelves, doors, and window frames
• HVAC outdoor unit installation
• Building façade accessories and outdoor equipment

They effectively address the common issue of galvanized carbon steel bolts rusting and requiring frequent replacement, providing safer and more reliable long-term fastening.

Main Types of Stainless Steel Expansion Bolts

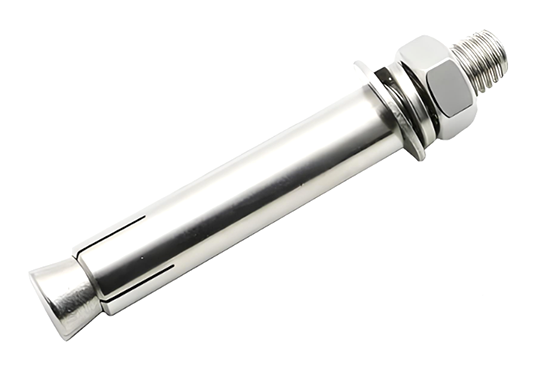

1. Standard Stainless Steel Expansion Bolts

Standard models such as GB/T 22795 (WP) – 2008 feature a simple structure and easy installation. After drilling the hole, the bolt is inserted and tightened with a nut to achieve anchoring. These bolts are suitable for light-load indoor applications such as household shelves, wall-mounted lamps, and small appliance brackets.

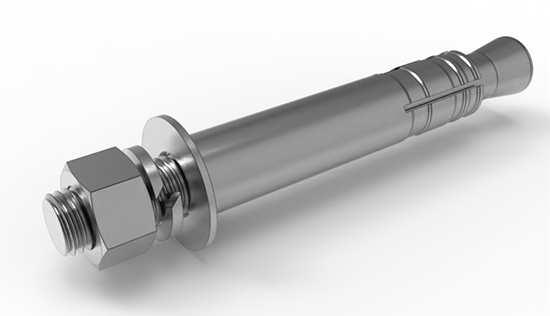

2. Heavy-Duty Stainless Steel Expansion Bolts

Heavy-duty expansion bolts (e.g., GB/T 22795 (TGQ) – 2008) are designed for higher load requirements. With thicker materials and stronger threads, they provide excellent tensile and shear strength. Typical applications include outdoor air conditioner units, industrial machinery bases, and large signage installations.

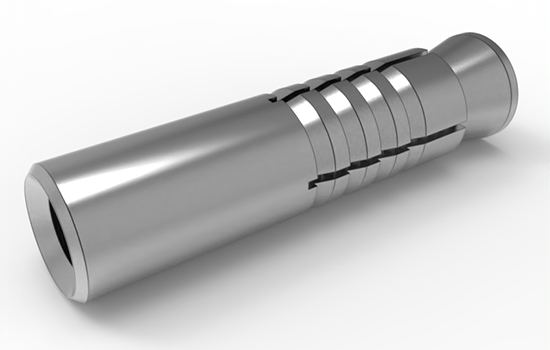

3. Internal Expansion Stainless Steel Bolts

Internal expansion types (e.g., GB/T 22795 (NP) – 2008) allow the bolt head to sit flush with the mounting surface, enhancing both safety and aesthetics. They are ideal for commercial ceilings, office partitions, and concealed furniture fixings where a clean finish is required.

Non-Standard and Special Expansion Bolt Designs

To meet more complex installation requirements, various non-standard stainless steel expansion bolts are available:

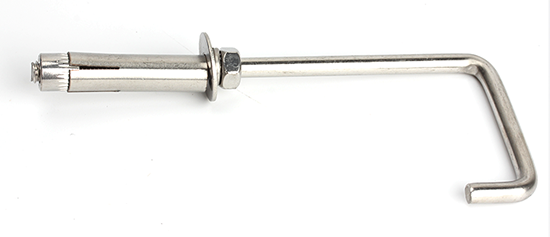

1. Square Hook Roof Tile Expansion Bolts

The square hook design increases contact area with roof tiles, improving friction and reducing displacement. Suitable for flat or slightly curved roof tiles, especially in windy outdoor environments.

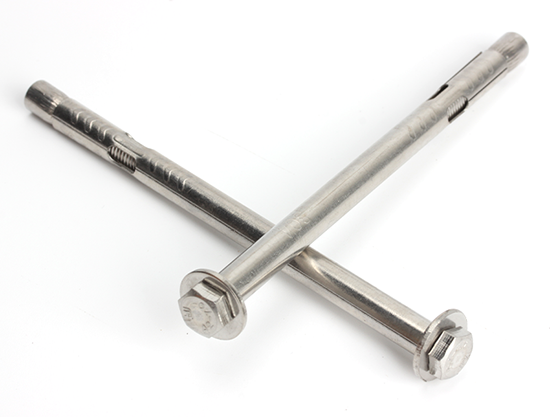

2. Hex Head Expansion Anchors

Hex head designs allow higher installation torque, ensuring full expansion and strong anchoring. Commonly used for metal frames, outdoor guardrails, and equipment base reinforcement.

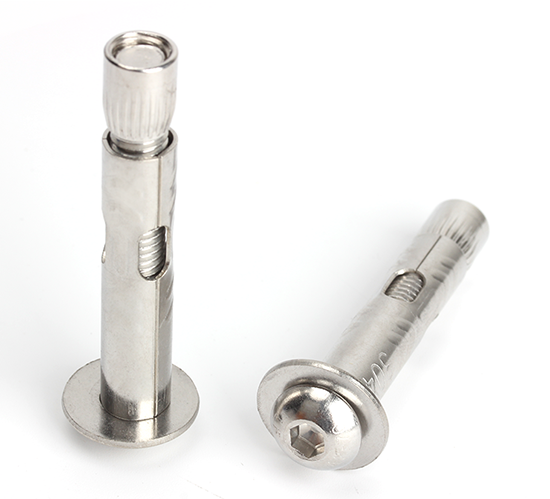

3. Hex Socket Pan Head Expansion Bolts

These bolts offer reliable torque transmission and a relatively smooth appearance, suitable for furniture frames, small equipment bases, and light machinery components.

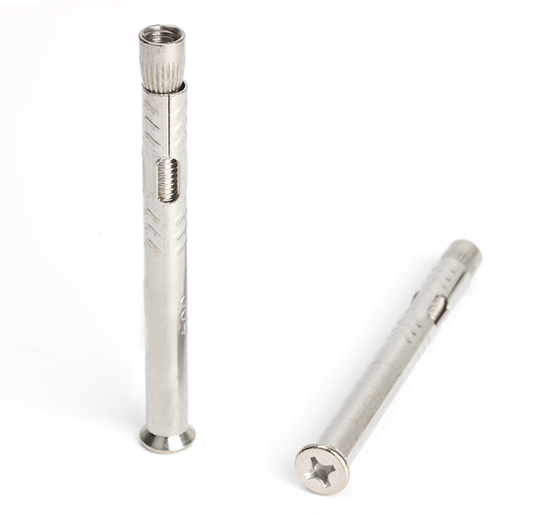

4. Phillips Countersunk Expansion Bolts

The countersunk head sits flush with the surface, ideal for decorative panels, ceiling systems, and applications requiring a smooth finish.

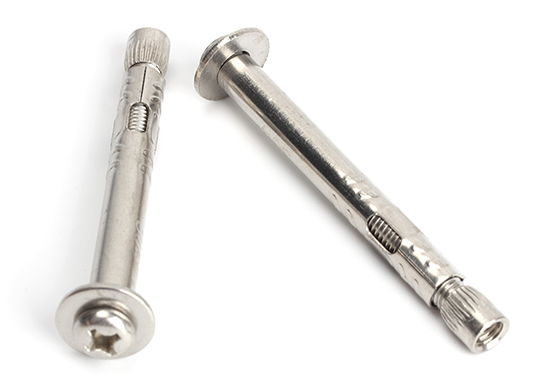

5. Phillips Pan Head Expansion Bolts

With a larger bearing surface and easy installation, these are commonly used in light-load scenarios such as shelving systems and small pipe brackets.

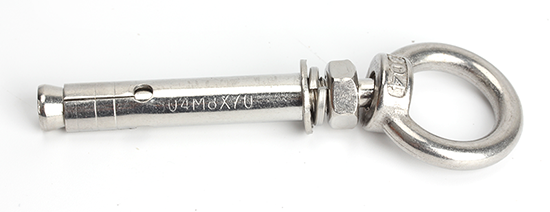

6. Eye Bolt Expansion Anchors

Integrated eye rings allow flexible suspension, making them suitable for lighting fixtures, ventilation ducts, and suspended equipment installations.

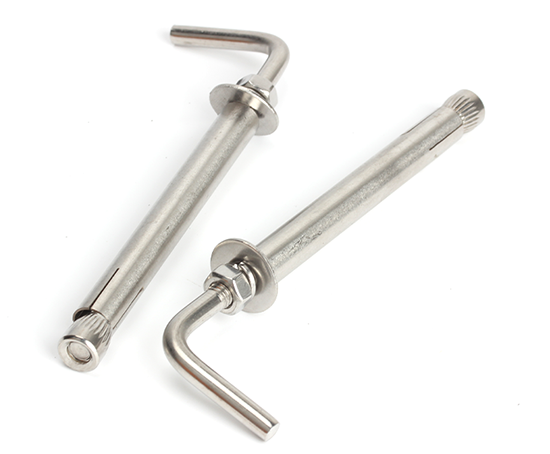

7. Straight Hook and Curved Hook Roof Anchors

These designs accommodate different roof tile structures, including flat, curved, and traditional ceramic tiles, improving adaptability in international roofing applications.

Specialized Stainless Steel Expansion Anchor Variants

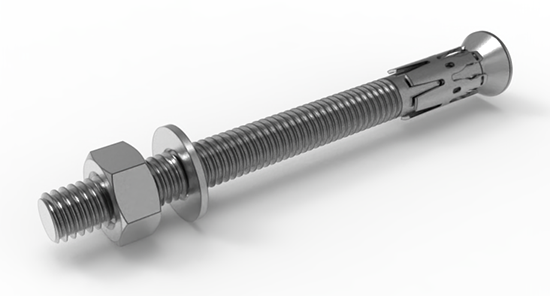

1. Stud-Type Stainless Steel Expansion Anchors

Also known as sleeve anchors, these feature an expansion clip at the tail end. They offer excellent fatigue resistance and are suitable for long-term static or quasi-static heavy loads such as machine tools, steel structures, and heavy pipelines.

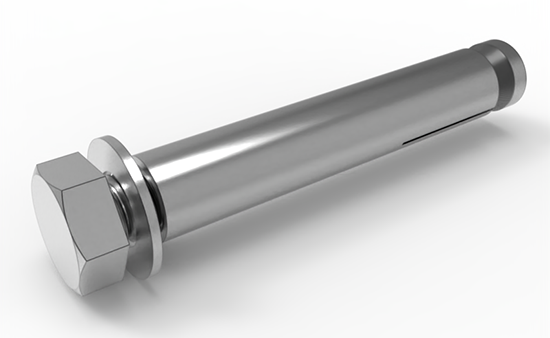

2. Cone Nut Stainless Steel Expansion Bolts

Featuring a conical nut and washer design, these bolts provide strong radial expansion while allowing the bolt head to remain hidden. Ideal for curtain wall frameworks and architectural decorative elements.

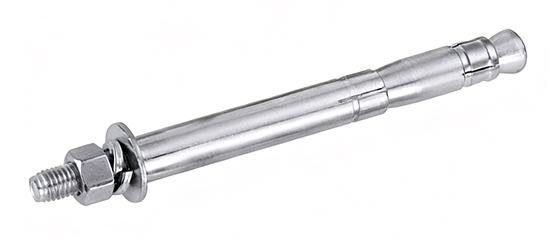

3. Double Sleeve Stainless Steel Expansion Bolts

With a dual-locking structure combining an outer serrated sleeve and an inner high-strength core, these anchors offer superior vibration resistance and shear strength. They are well-suited for elevators, ventilation systems, and industrial production lines.

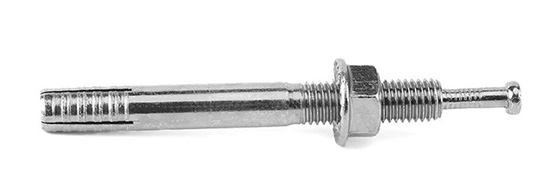

4. Drop-In Stainless Steel Expansion Anchors

Drop-in anchors allow fast installation by hammering the internal pin after insertion. They are suitable for light to medium loads and applications requiring high installation efficiency, such as temporary barriers and emergency repairs.

Reliable Stainless Steel Expansion Bolt Solutions
